ISO/IEC Cat 6A Component Level 90° STP Toolless RJ45 Keystone Jack with Shutter

LKVASD Series

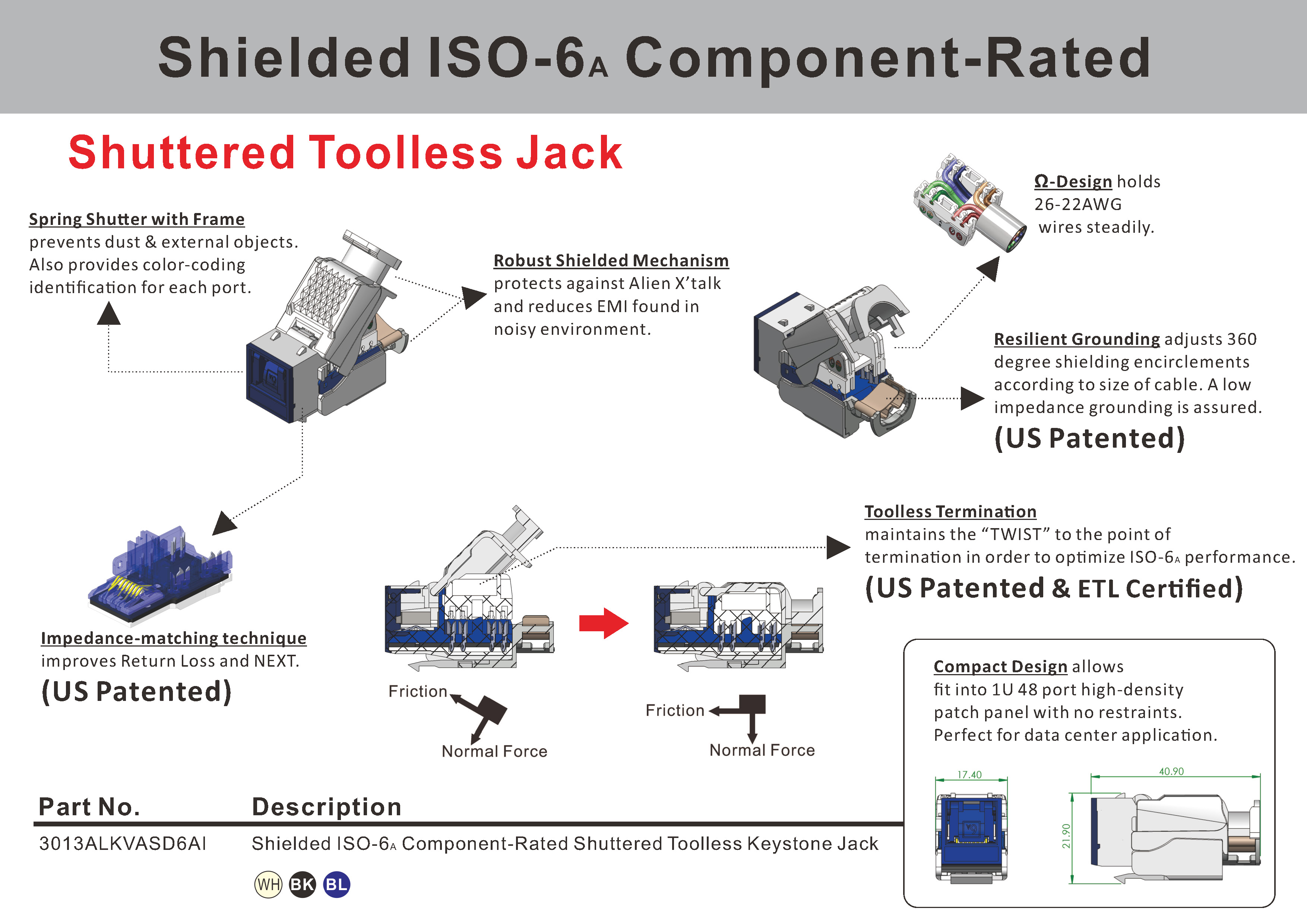

The LKVASD Series boasts a streamlined design with a single hinge, enhanced by a colored frame with a shutter. Its effortless collaborative movement for toolless termination, alongside an impedance-matching technique on the PCBA, is protected by two patents, one for mechanical design and one for transmission design.

• Toolless Design: Do not need punch down tool. Can be easily and quickly assembled product , also increase the efficiency of FTP installation.

• Spring Shutter with Frame: Prevents dust & external objects. Also provides color-coding identification for each port.

•  Designed to easily snap in and out of the wall outlet, patch panel and surface mount box

•  It is individually terminated using Insulation Displacement Connectors (IDC) with parallel plier for quick installation.

•  Comes with T568A/T568B color label

•  Fully complies with connecting hardware transmission performance of edition 2.2 of ISO/IEC 11801, CENELEC 50173-1, and ANSI/TIA-568-C.2 for Return loss, Insertion loss, NEXT loss, FEXT loss, TCL, TCTL, PSANEXT loss, and PSAFEXT loss up to 500MHz.

•  The unique structure provides an efficient and effective method of reducing alien crosstalk from neighboring connectors.

For Cat 6A, from 1MHz to 250MHz, ANSI/TIA 568.2-D and ISO/IEC-11801 shares the same limit but starts to vary from 250MHz to 500MHz. Any ISO Cat 6a Component-Rated jack that passes ISO Cat 6a NEXT limit will at the same time pass TIA Cat 6A NEXT limit with a higher margin. ISO Cat 6a beyond TIA Cat 6A – the stricter 3dB requirement approximately contributes 30% increase on performance at 500MHz. This also means more headroom to the entire installed cabling system in field.


 Made in Taiwan

 ETL Certified Cat 6 Connecting Hardware & Quarterly Tested

 4PPoE Compliant

 US 9391405 B1 / US 9929480 B1 Patented


LKVASD Series Toolless Keystone Jacks are available in ISO Cat 6a, TIA Cat 6A, Cat 6 and Cat 5e


For more information, please click below link to visit our official website

Component Level 90° STP Toolless RJ45 Keystone Jack with Shutter
